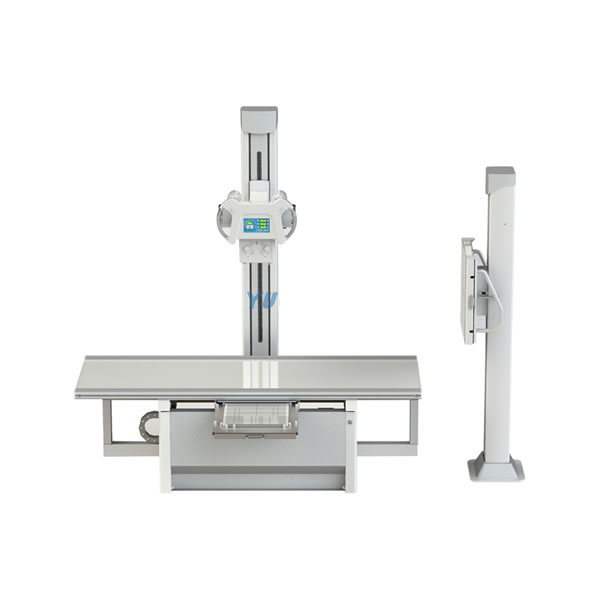

20kW/200mA Medical High Frequency X-Ray machine YSX200G
- Description
- Technical Specifications
- Product Parameters
Description
Floor-mounted medical x-ray machine / radiography machine that is of high quality and inexpensive.
Features
1. High precision control mode: Adopting HF (≥30kHz) inverter circuit combined
with analog & digital double-loop control mode (composed of microprocessor and PWM dedicated chip).
2. High-precision control in radiography time: Minimum exposure time is 0.0025 second, and
quick radiography is accessible at any time without the influence of power phase, thus high-quality images are easily achieved and radiation to patients is minimized.
3. High-precision tube current control: The heating of x-ray tube adopts dual-stage high frequency converter, through taking sample tube current by high-speed running A/D converter and implement real-time control through micro-processor.
4. Various parameter-setting keys: You can select kV, mA and mAs to set the desirable radiography conditions.
With quick human body parts programming, it simplifies the operation procedures.
5. Self-protection & self-diagnosis: Once malfunction occurs, generator will self-protection and give an alarm.
6. Compact structure, reduce installation space.
7. Digital upgradable.
| CONTENTS | YSX200G |
|---|---|
| Intermittent mode | 100kV, 200mA, 20kW |
| Power voltage | 380V±10% 50Hz±10% |
| Tube current | Radiography 16mA~200mA |
| Output voltage | Radiography 40-125KV step by 1kV; |
| resistance power | less than 0.5Ω |
| Output power | 20kW |
| Exposure time | Radiography 0.0025s~6.4s adjustable |
| Nominal frequency | 30kHz |
| Anode rotating speed | 2800r/min |
| Anode heat capacity | 140KHU |
| Focus | Small focus:1.0mm Big focus:2.0mm |
| Length*width*height of bed surface | 2000mm×750mm×690mmDeviation:±10mm |
| Horizontal movement distance (table) | ≥200mm |
| Vertical movement distance (table) | ≥900mm |
| Distance from table surface to film | 50mm±2mm |
| Distance of vertical movement | 770mm±10mm; |
| Moving crosswise (left & right) | +180°~-180°deviation<±2° |
| Moving lengthway (Along ground railway) |
≥1300mm |
| Fixed beam filtration grid density | ≥40 lines/cm. |
| Grid ratio | 10:01 |
| Focus distance | 100cm |
| Cassette size | 5″×7″ 8″×10″ 10″×12″ 11″×14″ 14″×17″ |
| Product parameters | |
| Brand: | YSENMED |
| MOQ: | 1 |
| Package: | Wooden Package |
| Ship From: | Guangzhou |
| Lead Time: | 1-3 days |
| Customization: | Yes |
